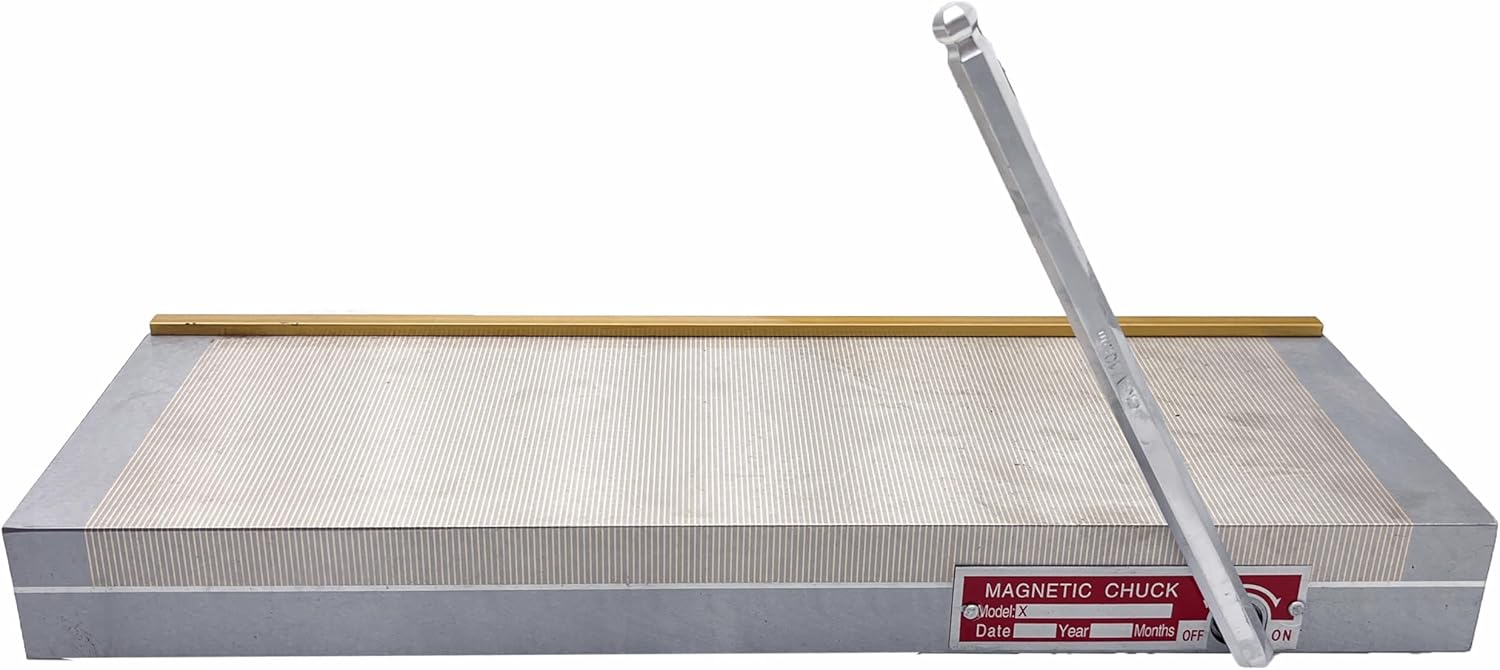

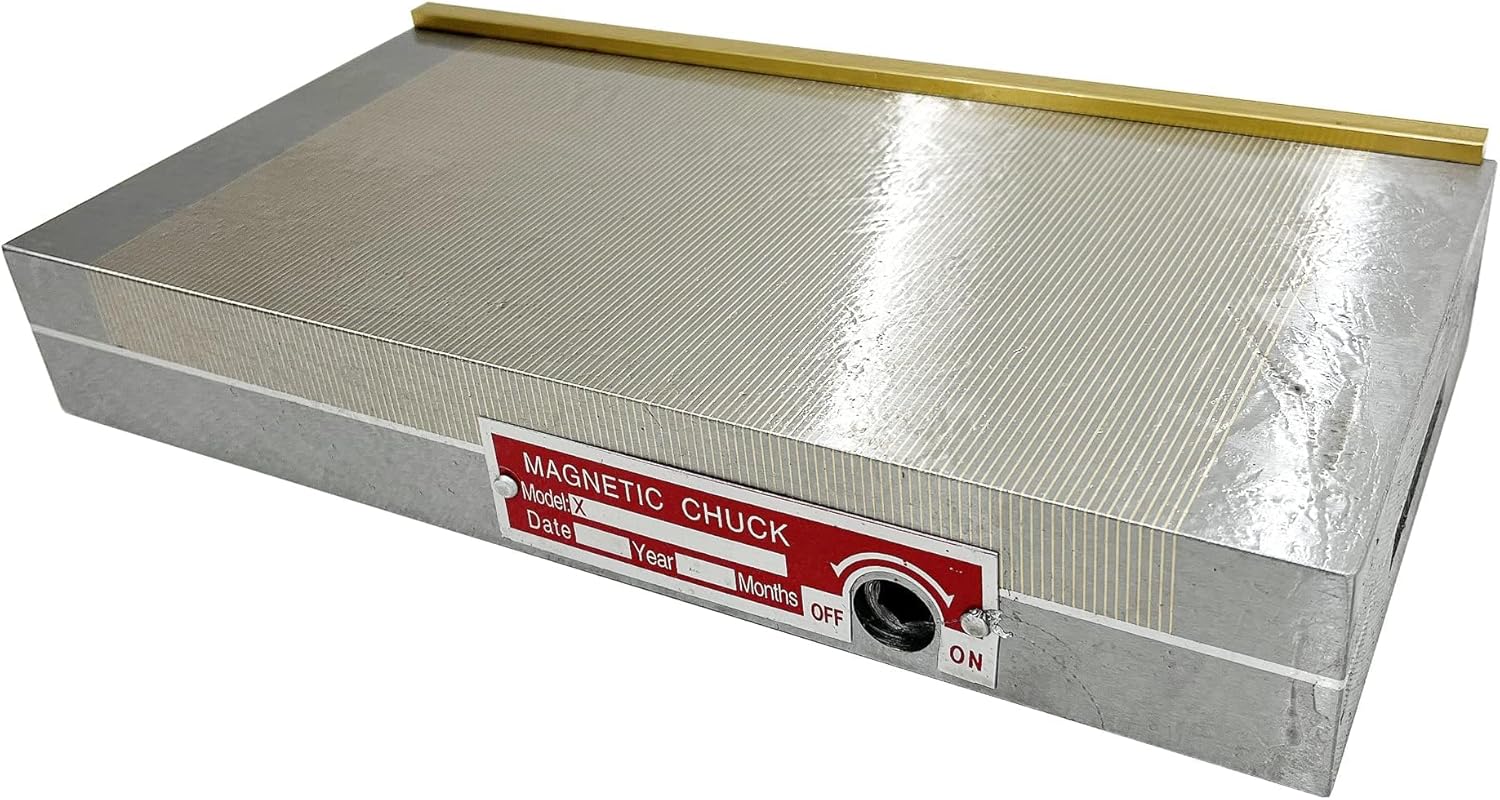

Permanent Magnetic Chuck, 6"x12" Rectangular Fine Pole Magnetic Chuck for Grinding Milling Lathe Workholding

ATTENTIONS:- Place the workpiece on the suction table, then insert the wrench into the shaft hole and turn it clockwise 180° to securely hold the workpiece for processing.- After completing the work, insert the wrench into the shaft hole and turn it counterclockwise 180° to easily release the workpiece.Maintenance:- Before use, wipe the sucker clean to avoid scratching the surface. After use, apply a coat of oil to the surface to prevent corrosion.- Operate within an ambient temperature range of -40°C to 50°C.- Avoid knocking or dropping to prevent magnetic reduction.- This strong, dense-pole permanent magnet sucker is ideal for surface grinders, spark machines, and Wire Electrical Discharge Machining (WEDM).Features:- Very fine spacing and uniform magnetic distribution, making it particularly suitable for processing small and thin parts.- The worktable precision remains unchanged during magnetizing and demagnetizing, ensuring consistent accuracy.- The panel is specially treated to prevent leakage and corrosion from cutting fluid.- To prolong the service life of the disk, store it in cutting fluid when not in use.- Six-surface fine grinding processing allows for vertical use on wire cutting machines, providing versatility and precision.- High-performance magnetic steel disc with strong suction and minimal remanence, ensuring reliable and efficient workholding.Applications:- Ideal for processing various magnetic conduction workpieces.- Suitable for surface grinders, tool grinders, EDM, and other applications.- Particularly well-suited for thin and lightweight workpieces due to its fine-pitched magnetic poles.Package Includes: ENT-170425- 1 × Magnetic Chuck 6 x 12 inchesExperience the precision and reliability of our Permanent Magnetic Chuck, designed to meet the demanding needs of your machining and workholding tasks.

• Magnetic Holding Power: Features high-performance magnetic steel delivering consistent 100–120N/cm² holding force with minimal remanence for secure workpiece retention during grinding and milling.
• Precision Ground Surfaces: Undergoes six-surface fine grinding to ensure flatness and stability, enabling reliable vertical or horizontal use on surface grinders and milling machines.
• Fine Pole Design: Equipped with a dense, narrow magnetic pole gap in this Rectangular Fine Pole Magnetic Chuck for even magnetic distribution, ideal for thin or small workpieces.
• Manual On/Off Control: Includes a locking handle that manually switches between magnetic and non-magnetic states without electricity, simplifying setup and enhancing safety.

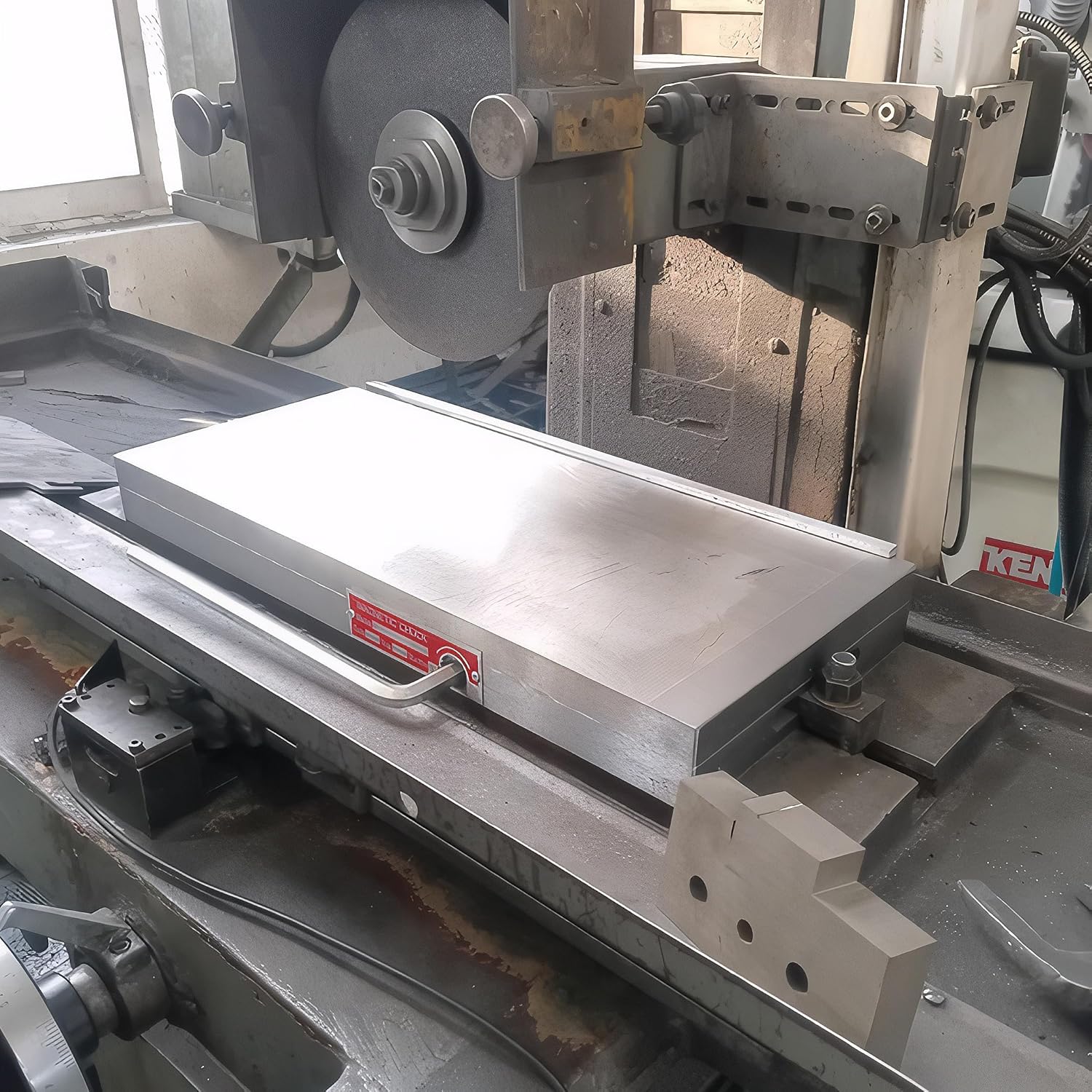

• Versatile Workholding Solution: Designed for use with surface grinders, tool grinders, lathes, and milling equipment as a Permanent Magnetic Chuck for accurate, non-marring workpiece positioning.
